The same amount of current will flow from the source and the drain terminals. When a DC voltage source is connected to the source and the drain leads of a JFET, maximum current will flow through the channel. At the end of the channel and the gate, lead wires are attached and the substrate has no connection.

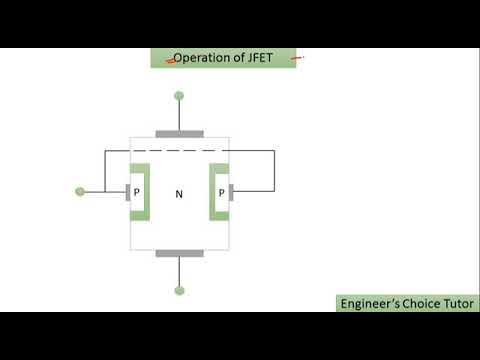

Then the gate is formed on top of the N channel with P type material. Following figure shows the crystal structure and schematic symbol of an N-channel JFET. It has a thin layer of N type material formed on P type substrate. There are two types of JFETs commonly used in the field semiconductor devices: N-Channel JFET and P-Channel JFET. Source − It is the entry point for majority carriers through which they enter into the semiconductor bar.ĭrain − It is the exit point for majority carriers through which they leave the semiconductor bar.Ĭhannel − It is the area of N type material through which majority carriers pass from the source to drain. Gate − By using diffusion or alloying technique, both sides of N type bar are heavily doped to create PN junction.
Following are some important points to remember about FET − Basically, JFETs consist of an N type or P type silicon bar containing PN junctions at the sides. The functioning of Junction Field Effect Transistor depends upon the flow of majority carriers (electrons or holes) only. Junction Field Effect Transistor (JFET).Most commonly two types of FETs are available. However, BJT is a current controlled device and JFET is controlled by input voltage. By appearance JFET and bipolar transistors are very similar.
Its operation is based on a controlled input voltage. Improved graphics alignment in breadboard view.A Field Effect Transistor (FET) is a three-terminal semiconductor device. I now have enough privileges to post attachments so here you go: I still don’t have enough privileges to post attachments so I’ll leave a link to the github repository where I’m hosting the parts: If someone needs a different pin configuration or package just write a reply or send me a message and I’ll see what I can do. I’ve modelled the N-Channel after the BF245 (GSD pin configuration) since that’s what I needed, and the P-Channel after an NTE489 (DGS pin configuration) since that’s the first I found when searching around. I needed an N-Channel JFET and since there’s no JFETs in Fritzing’s part library I decided to create one.Īt this point I thought: Hey, why not do a P-Channel just for completeness’ sake.
